Tetravan In-Floor Shower Pan Stainless Steel

The Tetravan In-Floor Shower Pan is designed to be recessed directly into your camper van floor, staying out of the way while remaining easily accessible. It offers a simpler, more streamlined alternative to the Tetravan Folding Shower.

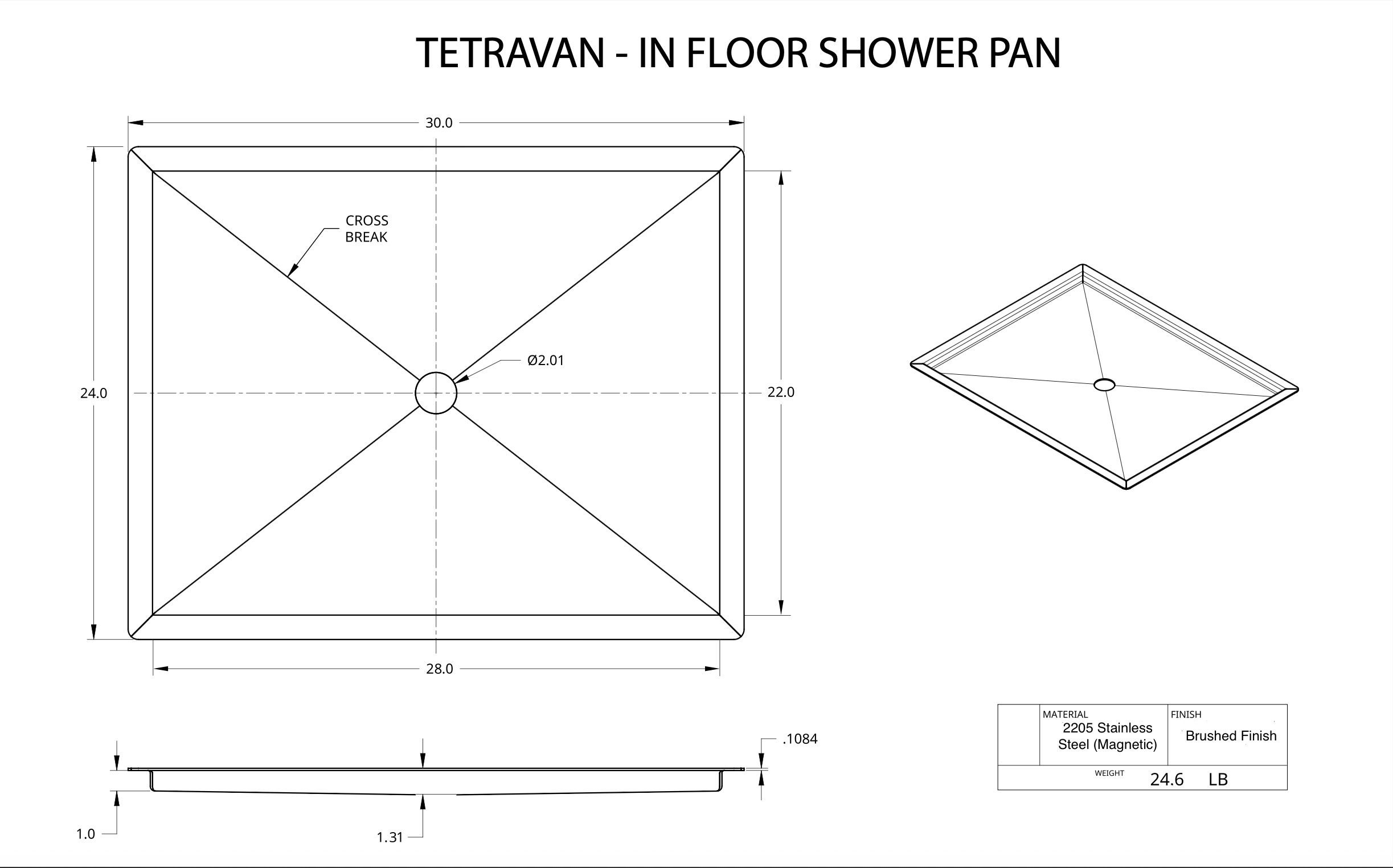

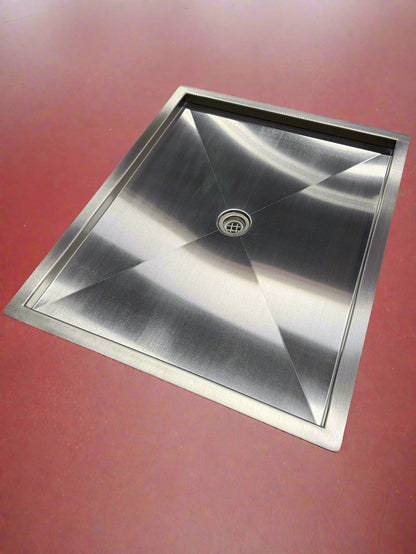

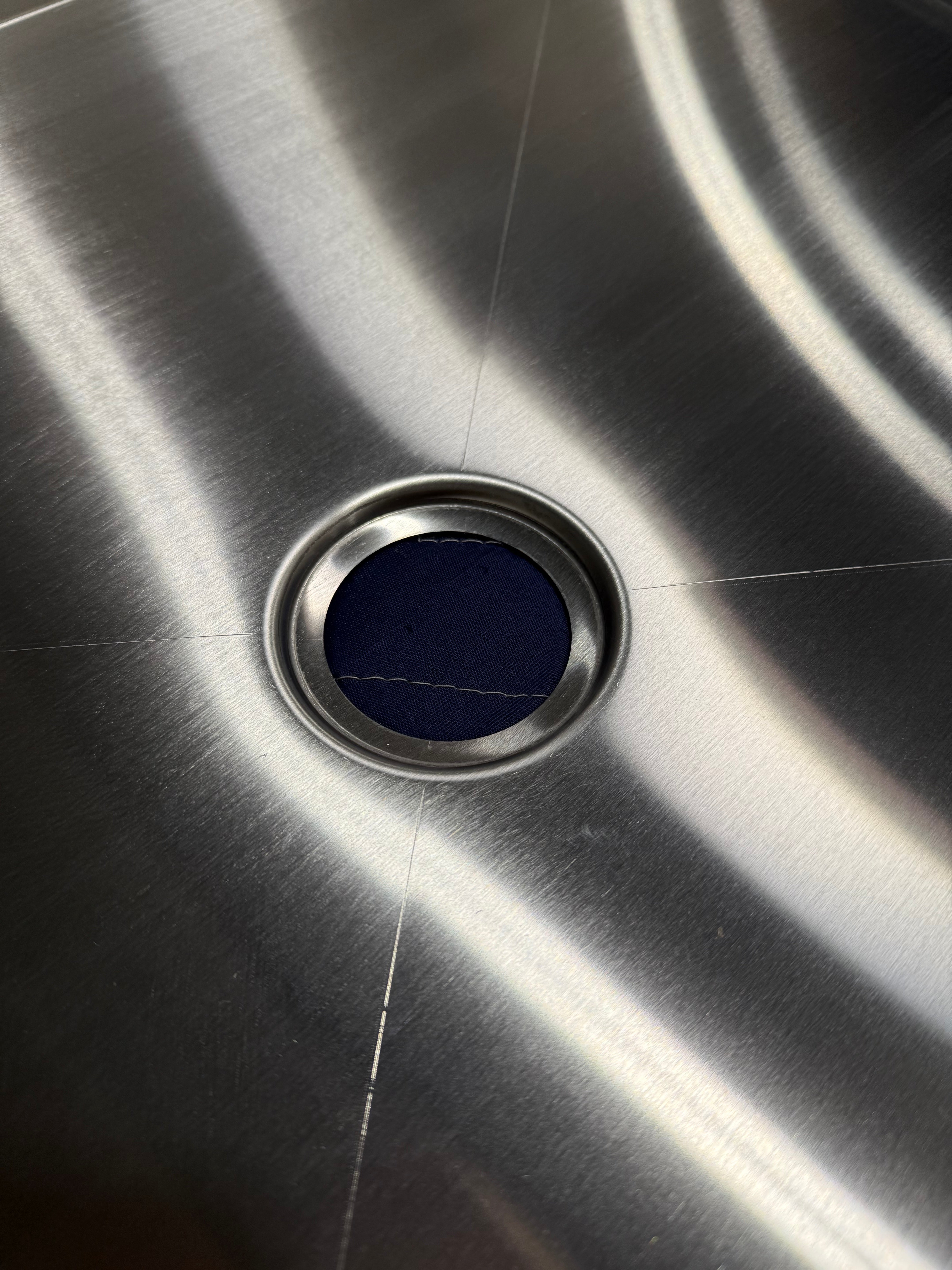

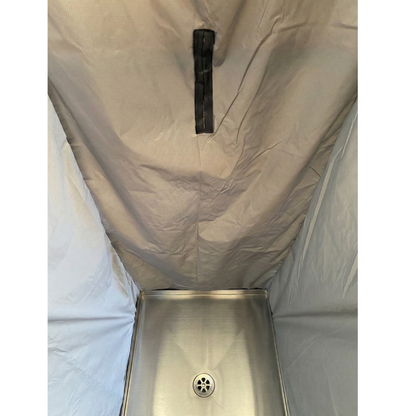

Constructed from brushed stainless steel with a magnetic finish, the pan installs flush into the floor surface and sits just over one inch below the finished floor when installed. This low-profile design is ideal for taller van dwellers, as it helps maximize interior headroom. A cross break in the base of the pan, along with a recessed drain hole, efficiently channels water toward the included drain fitting.

Optional Shower Curtain:

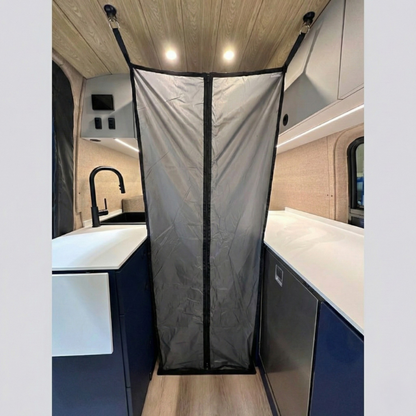

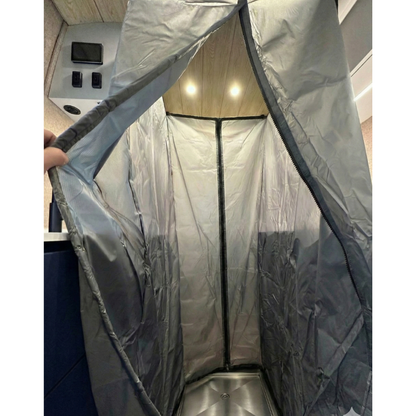

A magnetic, waterproof shower curtain is available and sized specifically to pair with the In-Floor Shower Pan. The curtain features 3/8-inch tall magnets sewn into the bottom edges, allowing it to securely attach to the inner edges of the pan. A water-tight, zippered front closure makes entry and exit easy while helping contain moisture.

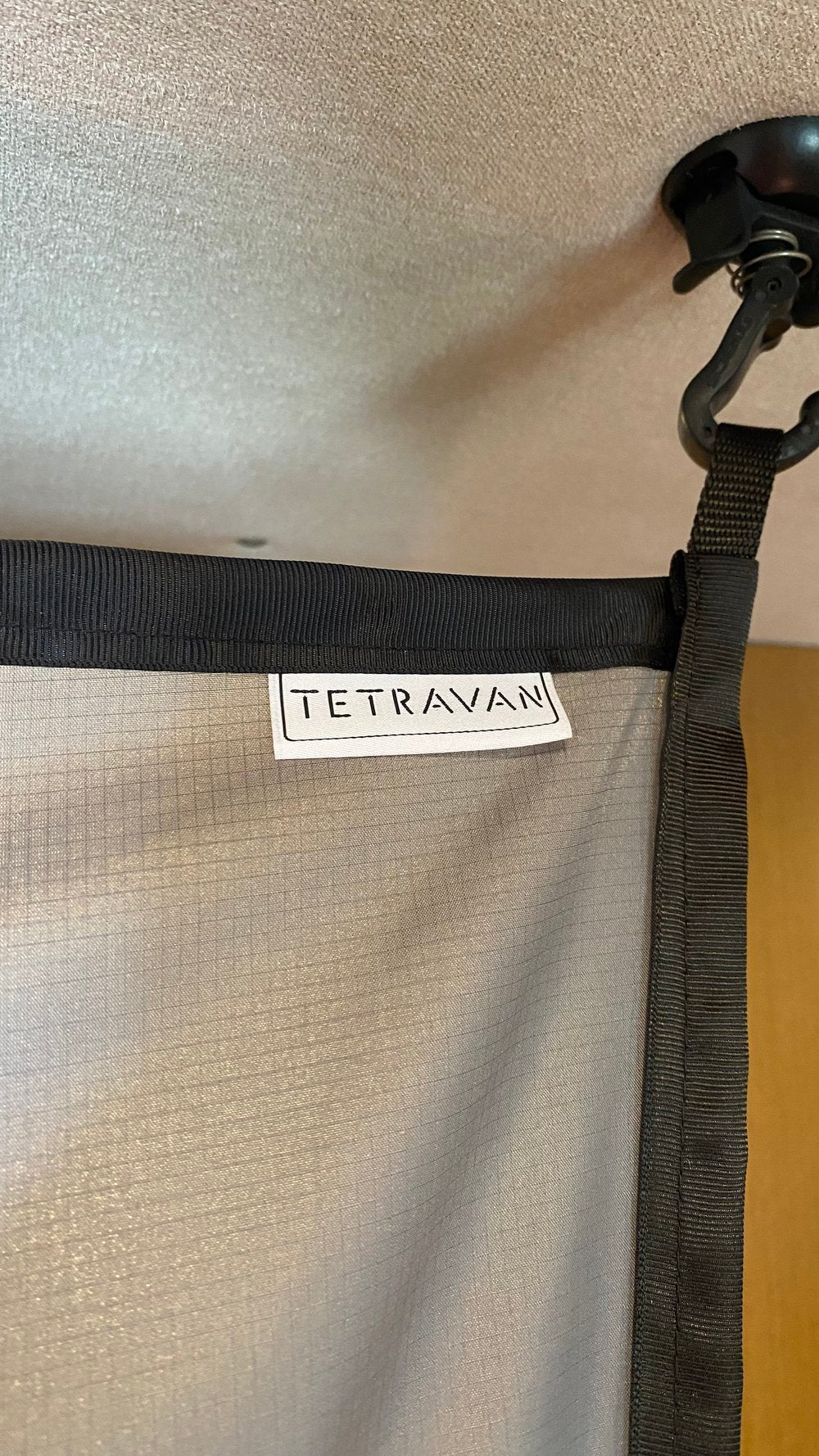

The curtain expands to over 30 inches wide near the top to provide additional shoulder room. It measures 71 inches tall and can be extended to match your roof height using optional 6-inch extenders. Both loops and grommets are sewn into the top edge to allow for flexible mounting heights.

Includes:

• Tetravan In-Floor Shower Pan

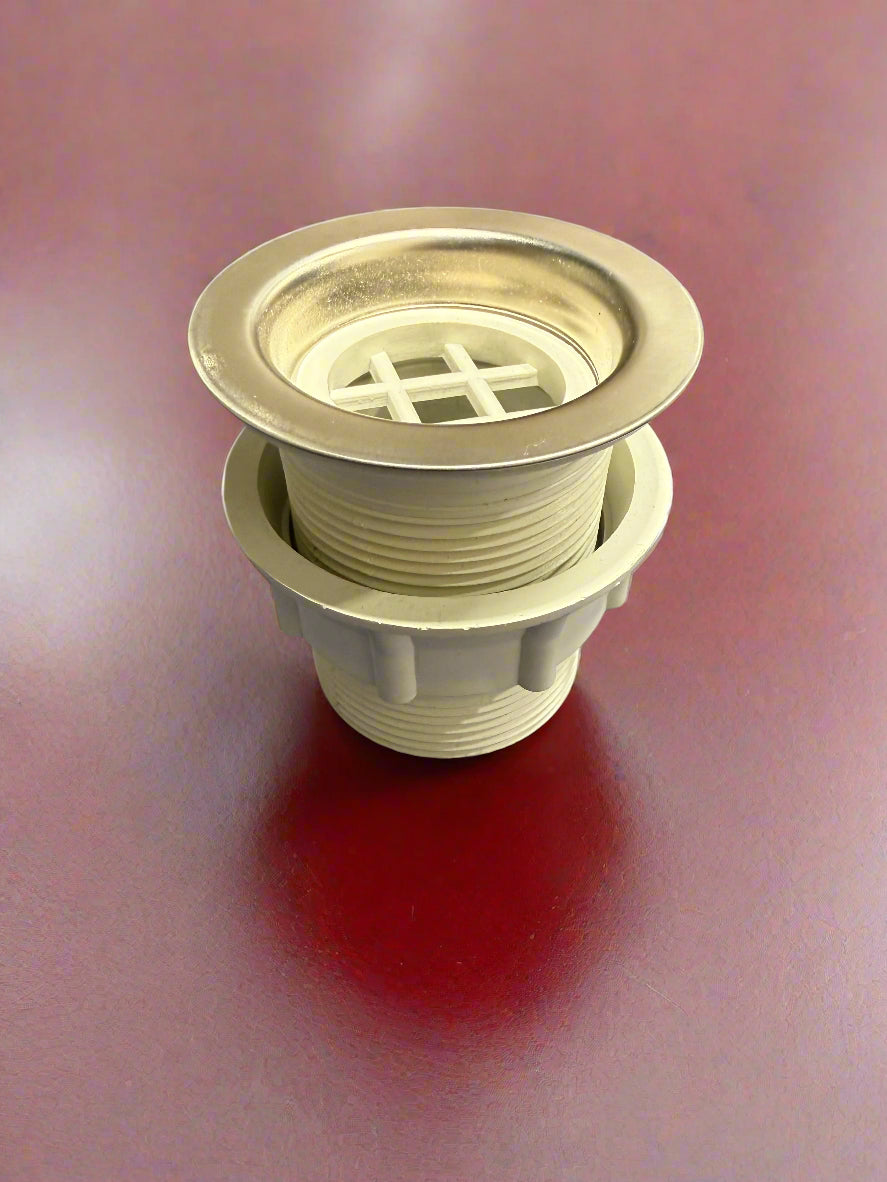

• 1-1/2" Threaded Straight Drain
• Optional: Tetravan Universal Shower Curtain - Magnetic waterproof ripstop curtain, perfectly sized and designed to work with the Tetravan In-Floor Shower Pan (71" tall)

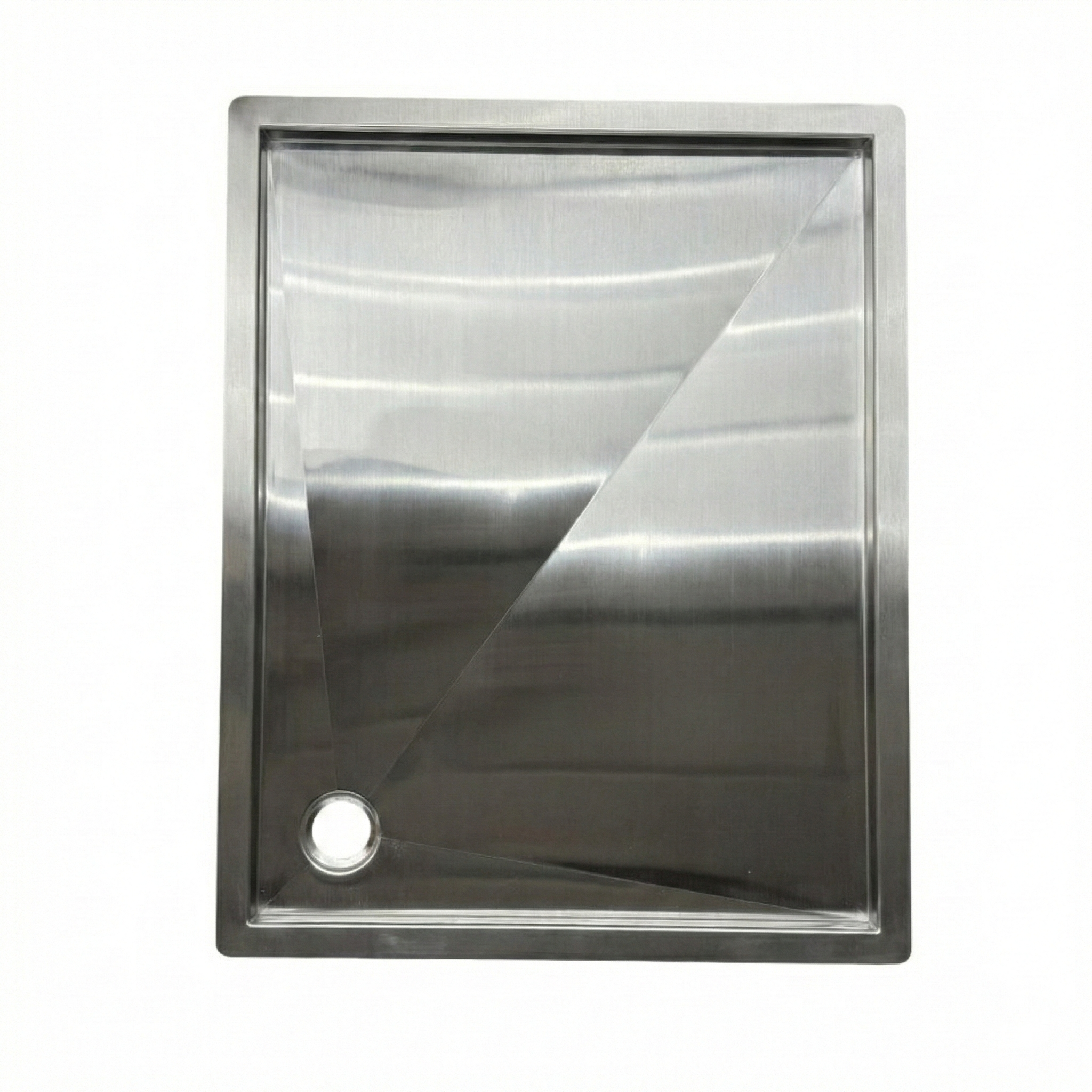

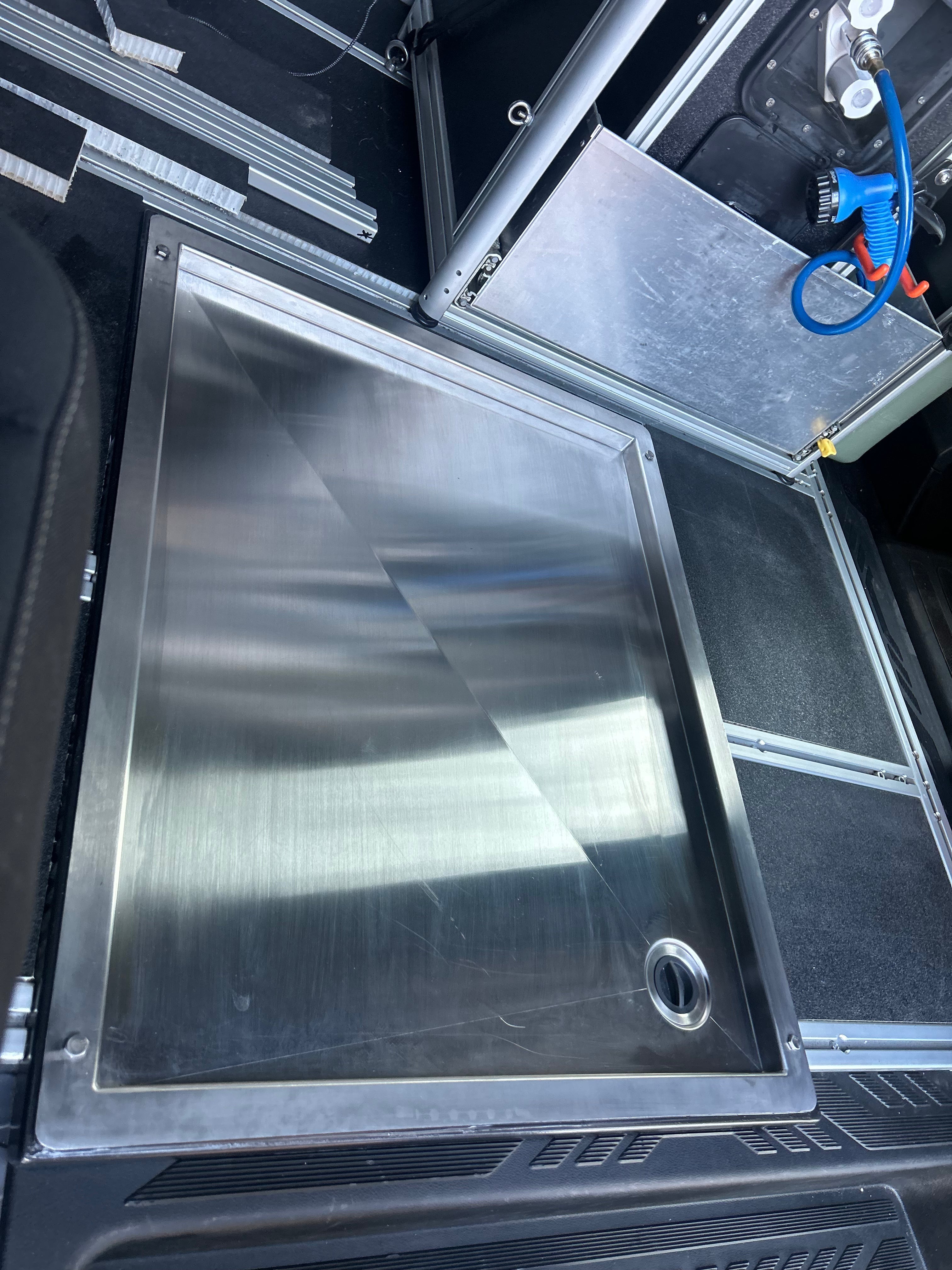

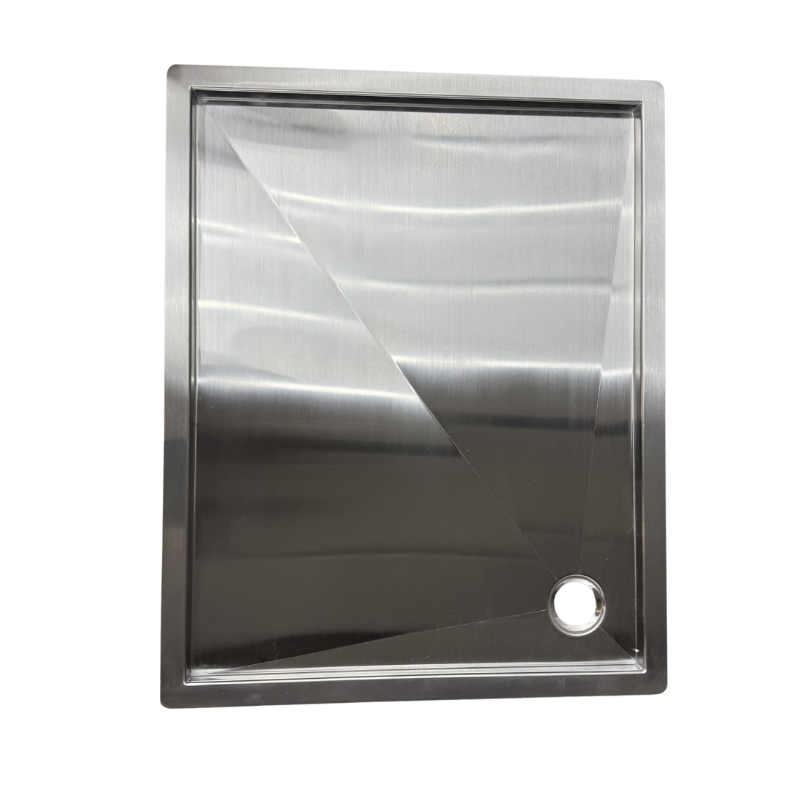

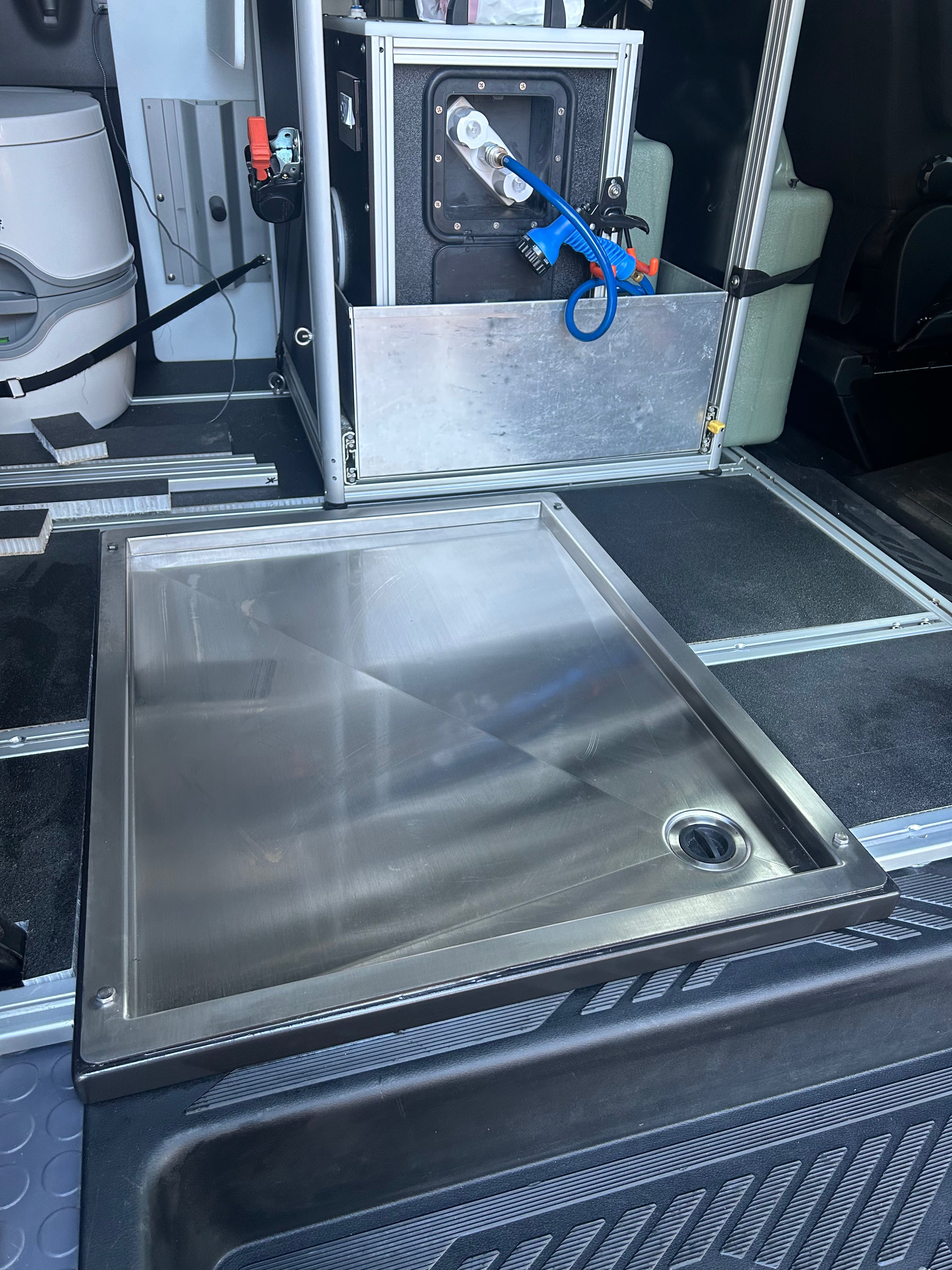

Drain Placement Options: Multiple drain hole options are available to help you avoid factory crossmembers, fuel tanks, or other underfloor obstructions. By rotating the shower pan during installation, you can position the drain in the location that best suits your specific build.

Important Notes:

• Your van needs to be level for this product to work. If you have a Ram ProMaster, which comes stock sloped downward in the front, you will need to install a leveling kit to use this product.

• To install this product we recommend the use of both a purpose-appropriate adhesive on the underside of the flange and at least 1" long countersunk screws through the flange into the subfloor.
