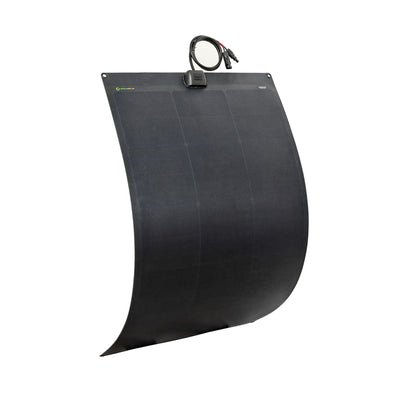

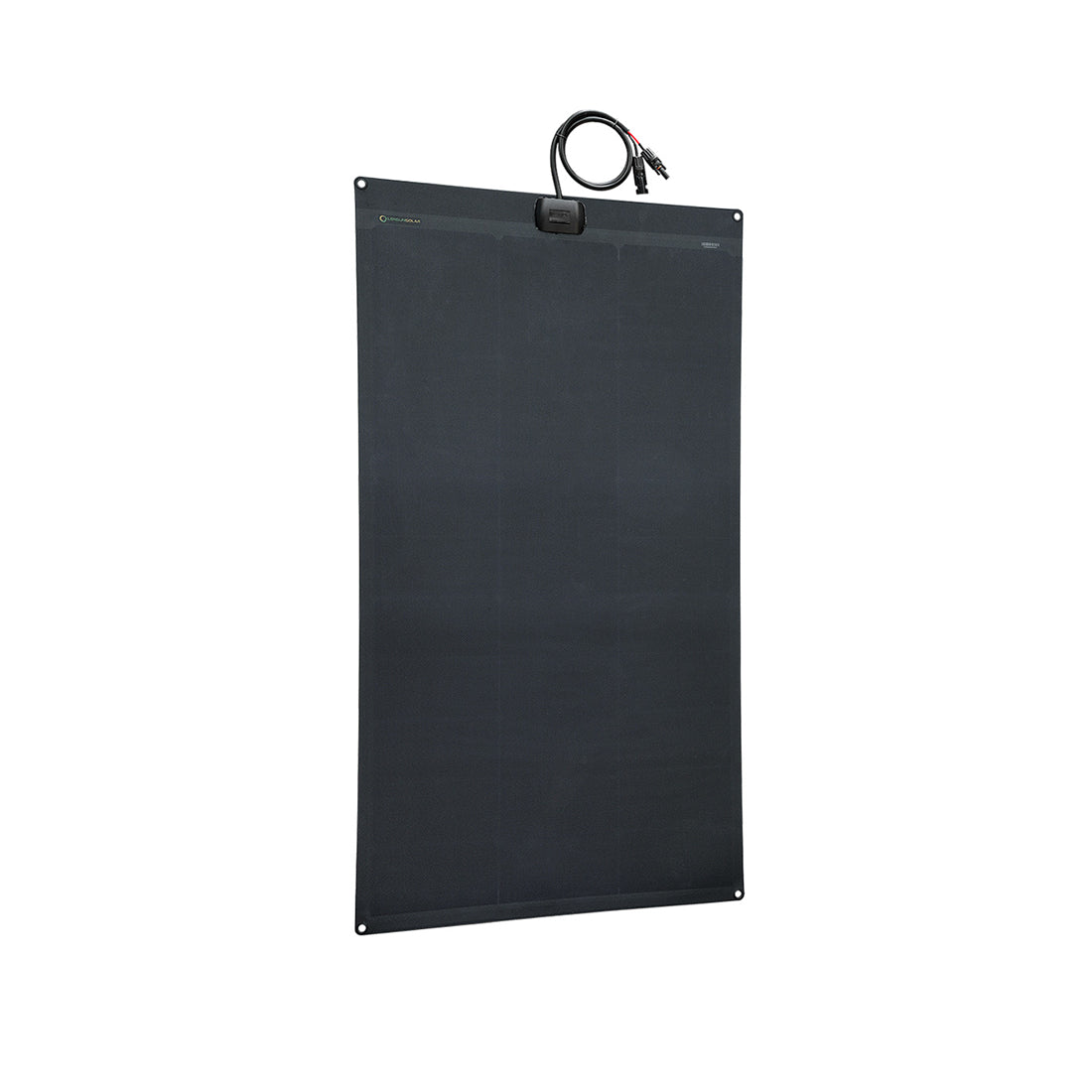

Lensun 125W Full Black Flexible Solar Panel, 25.8% Back Contact Solar Cell

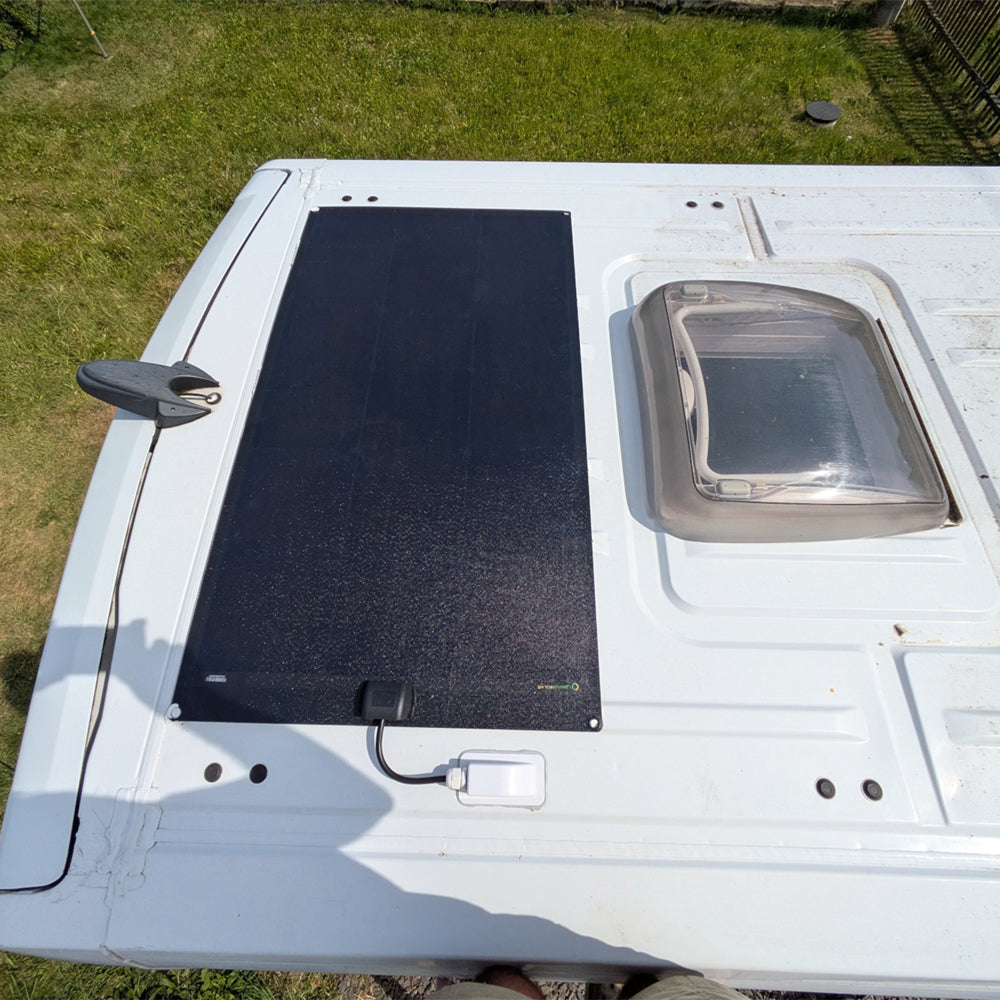

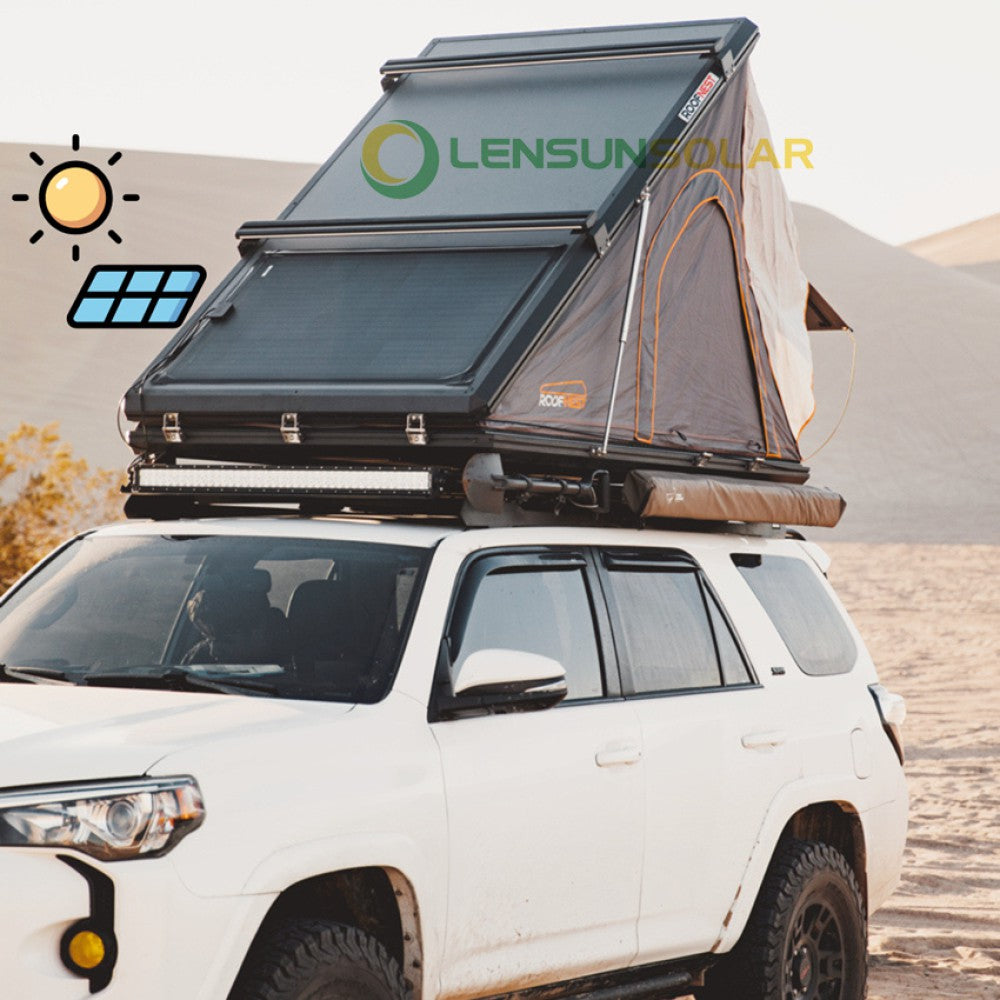

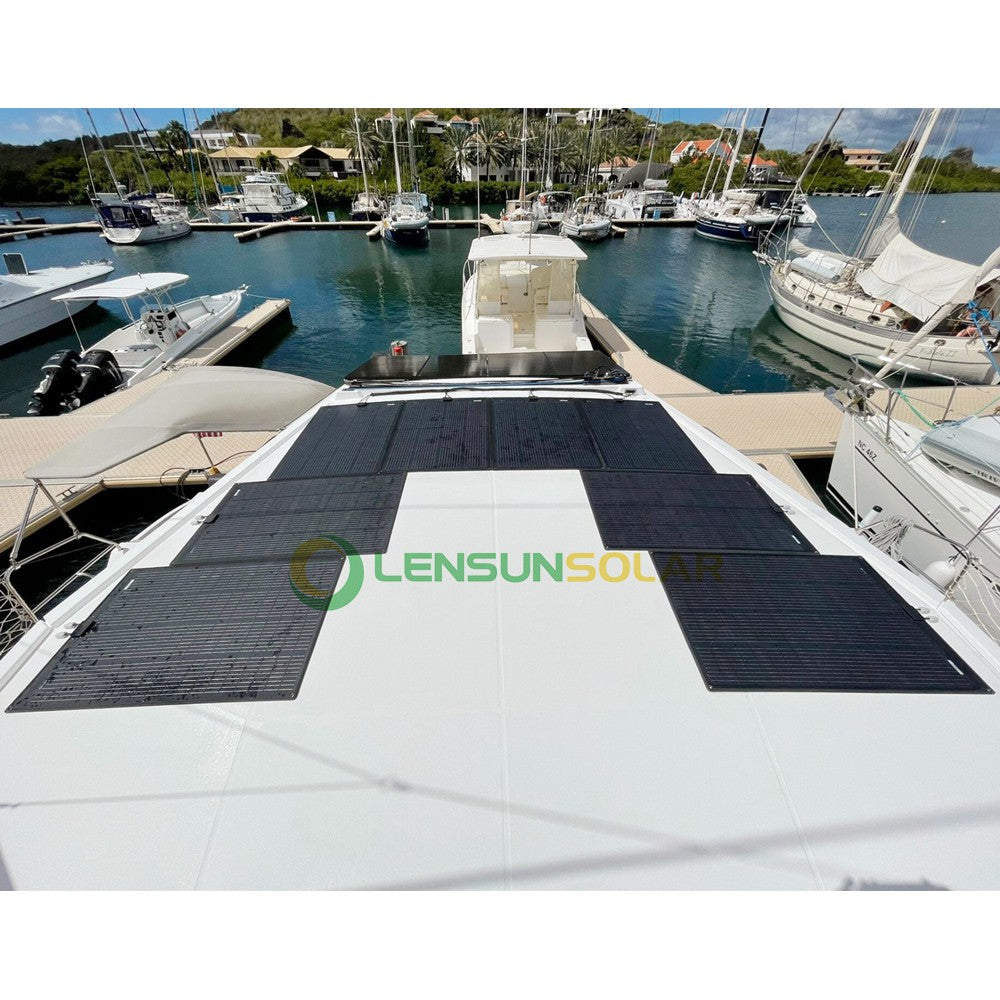

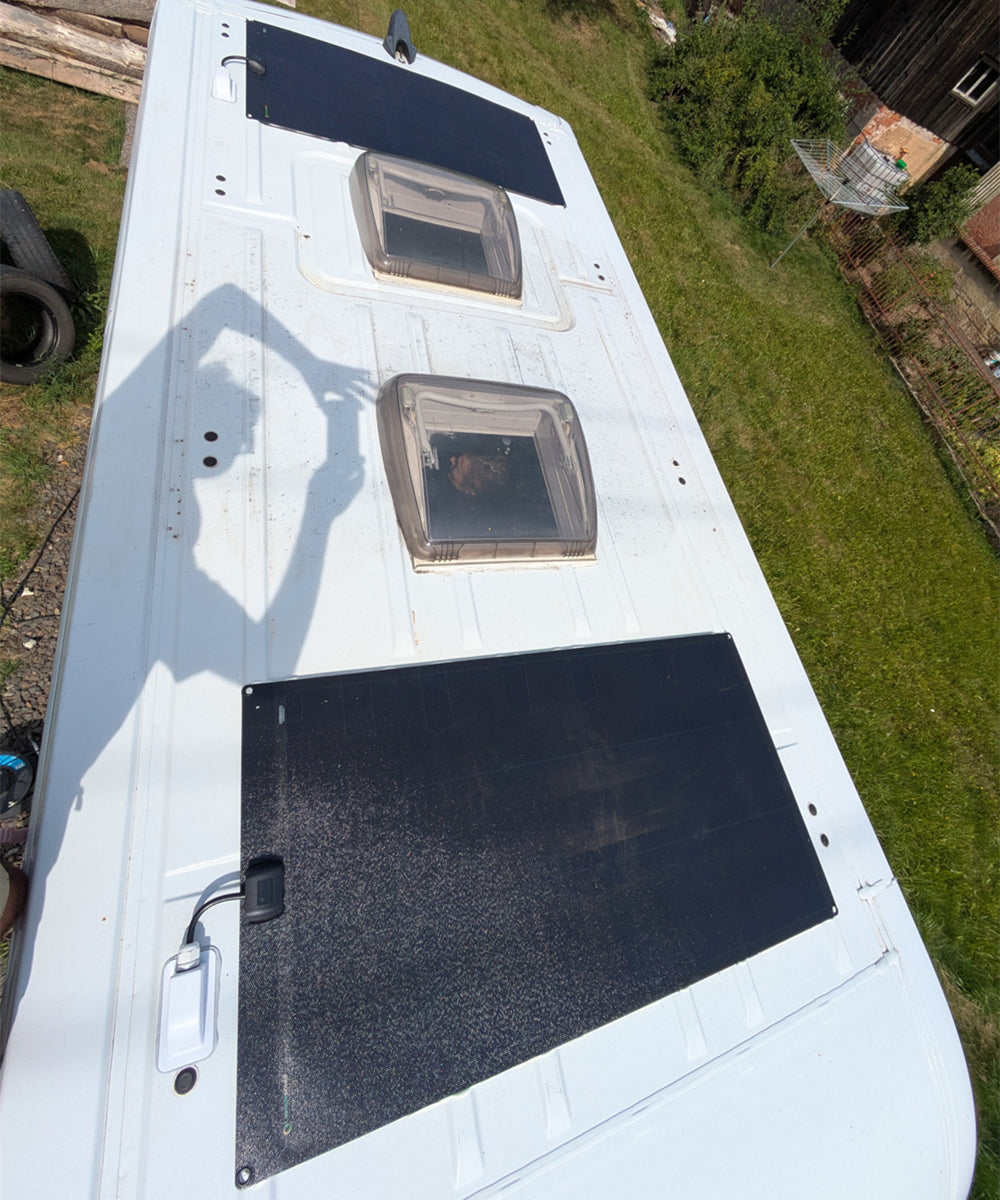

Lensun Black Flexible Solar Panel is a highly efficient and innovative power solution for RVs, campers, boats, roof tents, and other mobile applications. Featuring advanced BC (Back Contact) technology, it delivers up to 25.8% efficiency, enhanced durability, and a sleek all-black appearance. This panel is an ideal choice for users who want both high performance and refined aesthetics.

Features:

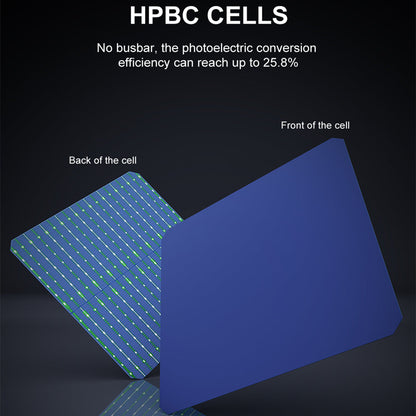

1. BC (Back Contact) Solar Cell: Designed with no front gridlines, allowing more sunlight to reach the cell surface directly. This increases energy generation and delivers up to 10% higher average power output compared to PERC solar cells in typical conditions.
2. Enhanced Thermal Performance: With fewer components on the front surface, BC solar cells generate less heat and operate more efficiently over time, helping maintain consistent power output.
3. Durable and Long-Lasting Design: The back-contact architecture improves mechanical strength and resistance to damage. Features excellent resistance to light-induced degradation, strong mechanical load performance, a low temperature coefficient, and high efficiency in elevated temperatures.
4. Sleek Appearance: Electrical contacts are positioned on the rear of the cells, creating a smooth, grid-free black surface. Ideal for customers seeking a clean, modern solar aesthetic.
5. Ultra-Thin & Lightweight: Only 0.1 in (2.5 mm) thick and weighing 4.6 lb (2.1 kg), approximately 30% lighter than traditional glass-framed panels. Well-suited for RVs, boats, and roof tents where weight and profile matter.
6. Flexible Installation Options: Can be mounted using adhesive, zip ties, or Velcro, with no need for structural roof reinforcements.

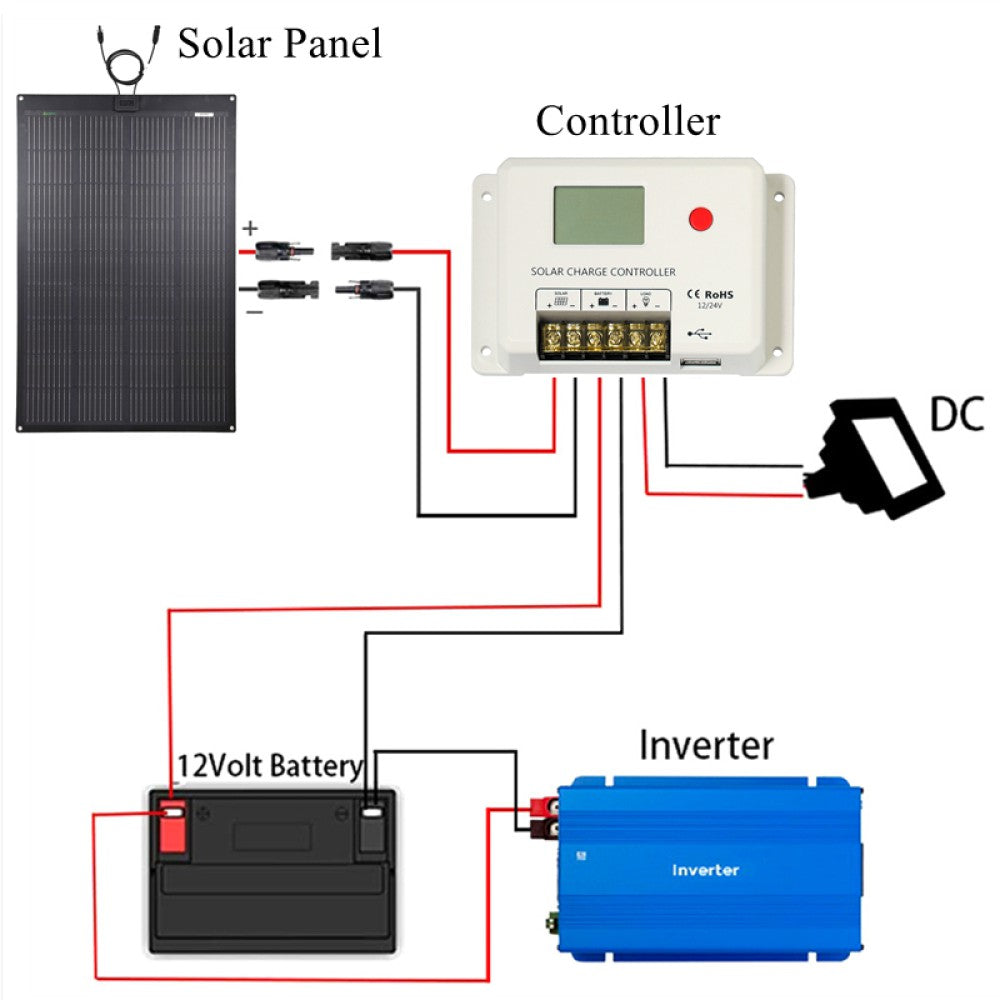

7. Optional Accessories: Compatible with an optional 10A solar controller and 16 ft (5 m) extension cables for expanded system setups.

Electrical Information:

• Peak Power: 125 W
• Solar Cell Efficiency: 25.8 %
• Maximum Power Voltage: 19.4 V
• Maximum Power Current: 6.44 A
• Open Circuit Voltage: 22.89 V
• Short Circuit Current: 7.08 A
• Power Allowance Range: +/-3 %
• Maximum System Voltage: 500 V
• Cable: 3.3 ft (1 m)

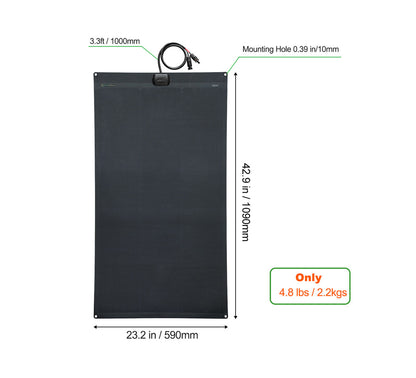

• Dimensions: 42.9 × 23.2 × 0.1 in (1090 × 590 × 2.5 mm)
• Net Weight: 4.8 lb (2.2 kg)
• Values at Standard Test Conditions: Air Mass - AM1.5, Irradiance - 1000W/m2, Cell Temperature - 77°F (25°C)

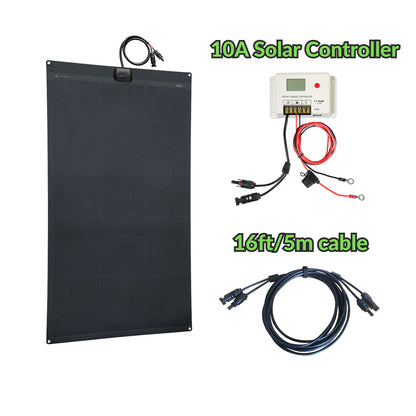

Package Contents:

• 1 x Lensun 125W Black Flexible Solar Panel
• 1 x 10A Solar Controller (optional)
• 1 x 16 ft (5 m) Extension Cable (optional)
